Trail Trio · Small helpers for the journey

Sole Sweep

Leave a little trail behind.

Printable prototype

Pocket boot-tread scraper

A small cleanup helper for the end of a muddy walk. Three blunt, tapered prongs reach wider tread grooves, with thumb grooves for a comfortable grip.

54 × 25 × 4 mm
Three short rounded scraper prongs
Tapered tips and three thumb grooves
5.4 mm carry eye for your keyring or cord

One printed piece. PLA or PETG. No additional components required to function; keyring not included.

Physical performance has not been tested. Not yet for sale.

Download the prototype print kit

Includes all three tools as STL files and P2S projects for PLA and PETG HF. Select your actual AMS spool before slicing.

A closer look at the design

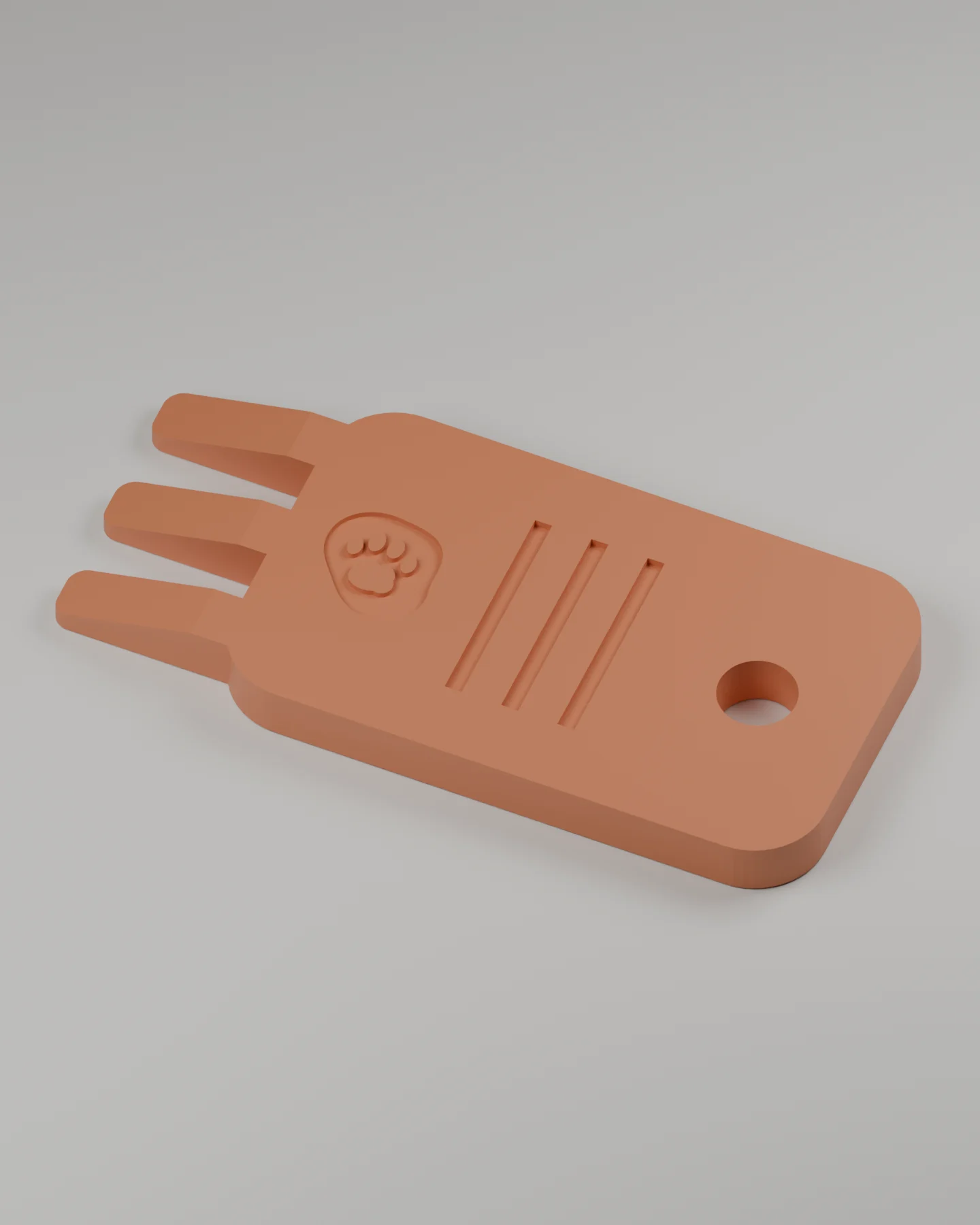

The actual exported mesh, shown as a digital CAD render.

Sole Sweep actual printable CAD geometry — Digital geometry reference. The marketing image is illustrative.

Before you try it

Remove from your keyring before cleaning. Test on old footwear first. Avoid forcing prongs into narrow gaps or using them as pry bars; rinse after use.

Print a first prototype

The supplied P2S projects use a 0.4 mm nozzle, 0.20 mm layers, four walls and 40% gyroid infill, with supports disabled. Print flat as supplied. For PETG other than PETG HF, choose the matching filament profile and reslice.

Digital checks passed for watertight geometry and slicing in PLA and PETG HF. Physical fit, grip, strength and wear still need testing.
